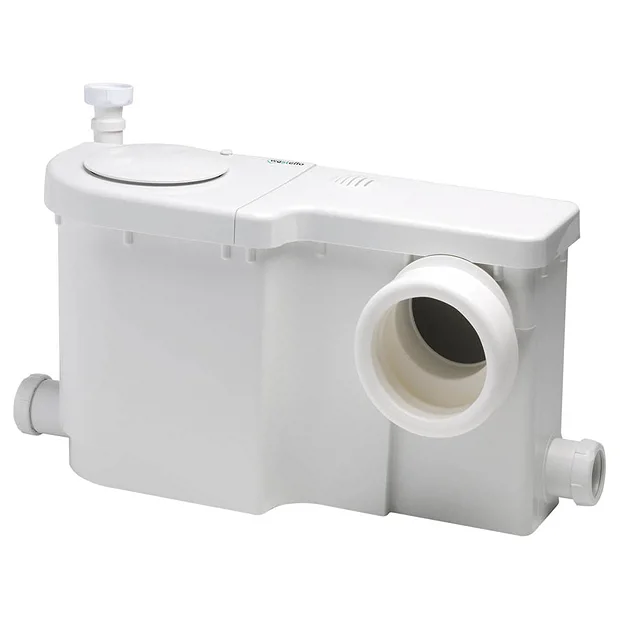

Stuart Turner Wasteflo WC3 Bathroom Macerator Waste Pump

Stuart Turner Wasteflo WC3 Bathroom Macerator Waste Pump – 46576

Macerators are a simple way to pump waste water from a sanitary appliance where there is no local access to a soil pipe. The Wasteflo WC3 is a slimline sanitary macerator for domestic use, designed for the drainage of a fixed WC and requiring just 140mm clearance between the WC spigot and bathroom wall.

This model is designed to pump waste away from one WC and two sanitary devices.

Product Details

• Brand: Stuart Turner
• Product Code: 46576
• Model: WC 3
• Noise level: 50 dB (typical)
• Adjustable WC coupling
• Slimline design
• Easy access cassette unit
• Maximum Head: 5.4 metres

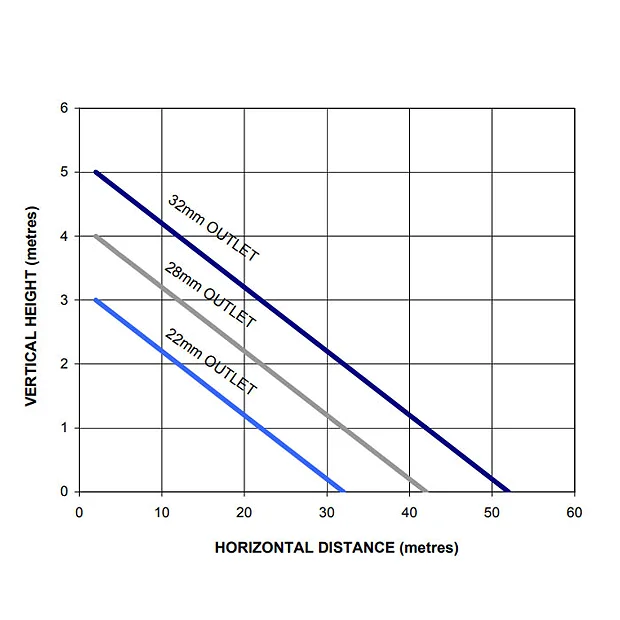

• Pumping Distance (vertical): Up to 5 metres
• Pumping Distance (horizontal): Up to 52 metres
• Maximum Flow: 90 l/min
• Maximum Ambient Air Temperature: 40 °C
• Min / Max Water Temperature: Min 4 °C / Max 50 °C
• WC: 102mm dia.
• Inlet(s): 40mm (1½ “) dia.
• Outlet: 32mm, 28mm, 22mm wastepipe adaptor
• Power Supply/Phase/Frequency: 230 V a.c./ 1 / 50 Hz
• Current (Full Load): 2.2 Amps
• Power Consumption: 500 Watts
• Fuse Rating: 5 Amps
• Power Cable (Pre-wired): 1.5 metres
• Enclosure Protection: IPX4
• Length: 482mm
• Width: 180mm
• Width Behind Pan: 140mm
• Height (Excluding Hoses): 278mm
• Weight (Including Fittings): 8.2Kg

2 Year guarantee
