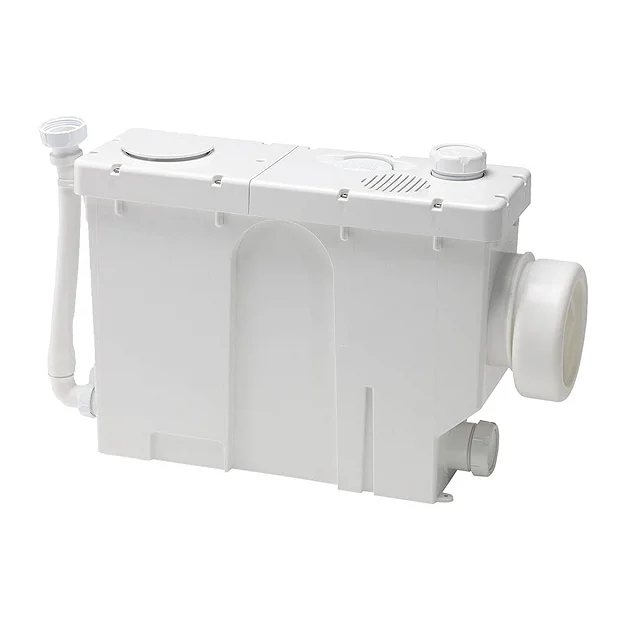

Stuart Turner Wasteflo WC4C Bathroom Macerator Waste Pump

Stuart Turner Wasteflo WC4C Bathroom Macerator Waste Pump – 46653

Macerators are a simple way to pump waste water from a sanitary appliance where there is no local access to a soil pipe. The Wasteflo WC4C is a slimline sanitary macerator for domestic use, designed for the remote drainage of a wall mounted fixed WC as well as wall mounted pans and capable of being concealed behind a panel.

This model is designed to pump waste away from one WC and three sanitary devices.

Product Details

• Brand: Stuart Turner
• Product Code: 46653
• Model: WC 4C
• Noise level: 50 dB (typical)
• Adjustable WC coupling
• Slimline design
• Easy access cassette unit
• Maximum Head: 5.4 metres
• Pumping Distance (vertical): Up to 5 metres
• Pumping Distance (horizontal): Up to 52 metres
• Maximum Flow: 90 l/min
• Maximum Ambient Air Temperature: 40 °C
• Min / Max Water Temperature: Min 4 °C / Max 50 °C
• WC: 102mm dia.
• Inlet(s): 40mm (1½ “) dia.
• Outlet: 32mm, 28mm, 22mm wastepipe adaptor
• Power Supply/Phase/Frequency: 230 V a.c./ 1 / 50 Hz
• Current (Full Load): 2.2 Amps
• Power Consumption: 500 Watts
• Fuse Rating: 5 Amps
• Power Cable (Pre-wired): 1.5 metres
• Enclosure Protection: IPX4
• Length: 540mm
• Width: 150mm
• Height (Excluding Hoses): 320mm
• Weight (Including Fittings): 7.4Kg

2 Year guarantee
